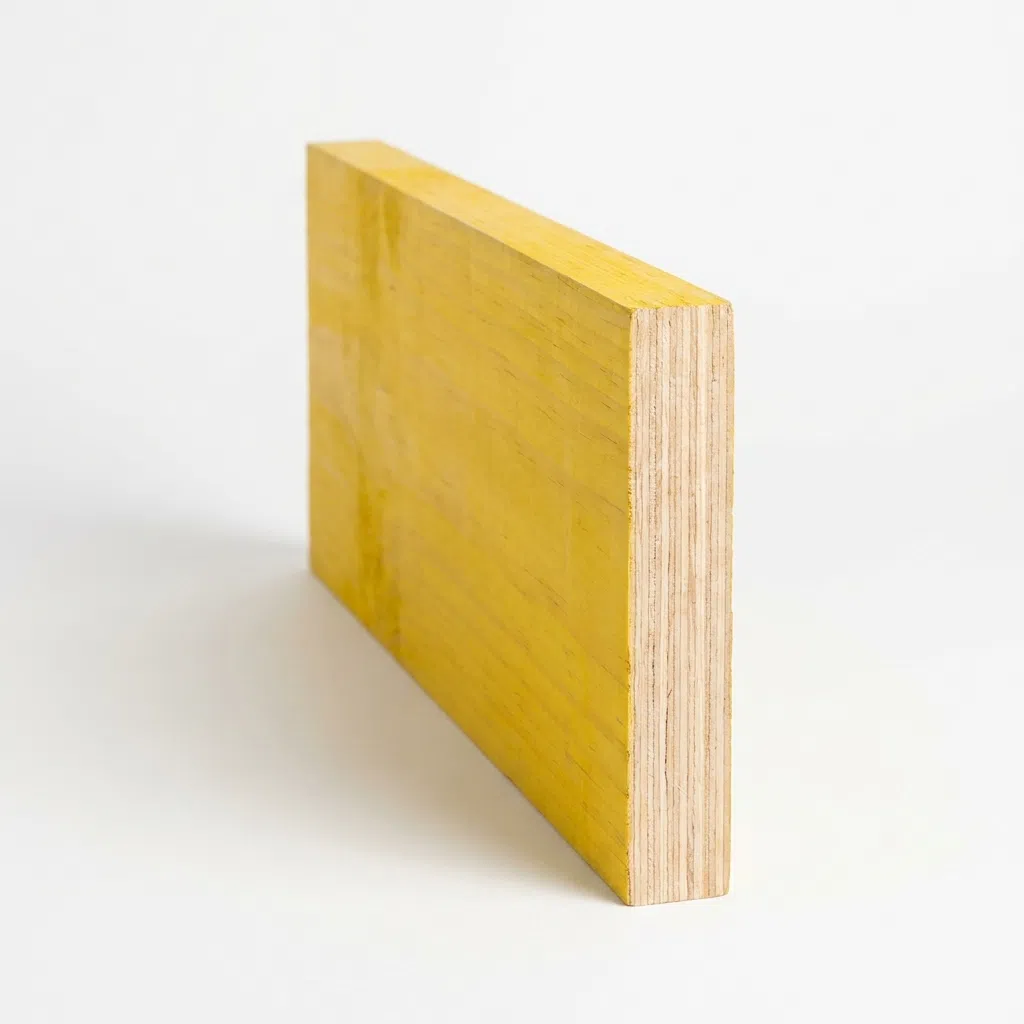

MeySPAN LVL 14 in a 190 x 45mm section — engineered structural timber for floor joists, rafters and lintels at standard spans. Laminated veneer lumber is built up from thin timber veneers bonded under heat and pressure, so it behaves far more predictably than sawn hardwood of the same size: it comes straight, stays straight, and carries the load the span table says it will.
Why LVL over sawn timber
Because the veneers are graded and the natural defects are dispersed through the lamination rather than concentrated in one knot, every length performs to the same published values. There is no picking through the pack looking for a straight one. It also resists the shrinking, cupping and twisting that sawn timber goes through as it dries out — which matters in Melbourne, where framing can sit exposed through a wet winter before it is lined.
Typical applications
- Floor joists at standard residential spans
- Rafters and roof beams
- Lintels over wider window and door openings
- Deck framing and bearers
Specifications
| Depth | 190mm |
|---|---|
| Thickness | 45mm |
| Stress grade | F17 |
| Stiffness | E14 |
| Treatment | H2 — termite protection, internal use |
| Material | Laminated Veneer Lumber |
| Standard | AS/NZS 4357.0 |
| Lengths | 2.4m to 7.2m in 0.3m increments |
Buying LVL in Melbourne
All 17 lengths are priced by the metre, so a 4.5m length costs exactly what 4.5 metres should — no jumping to the next size up. Available for pickup from our Thomastown yard or delivery across Melbourne. If you are working from an engineer’s drawing and want to check the section is right before you order, call us on 03 9465 9875 and we will go through it with you.
Product images are illustrative and may not show the exact section supplied. Confirm sizing and span requirements with your engineer or building surveyor before ordering.
